CCF 4500.940 Cortical Grinder

$0.00

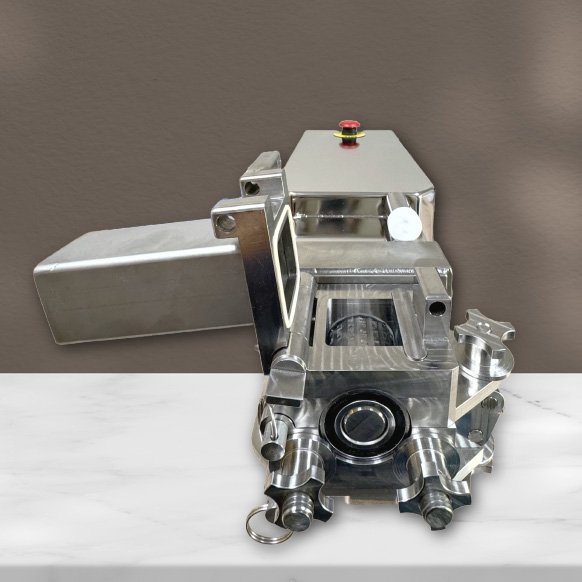

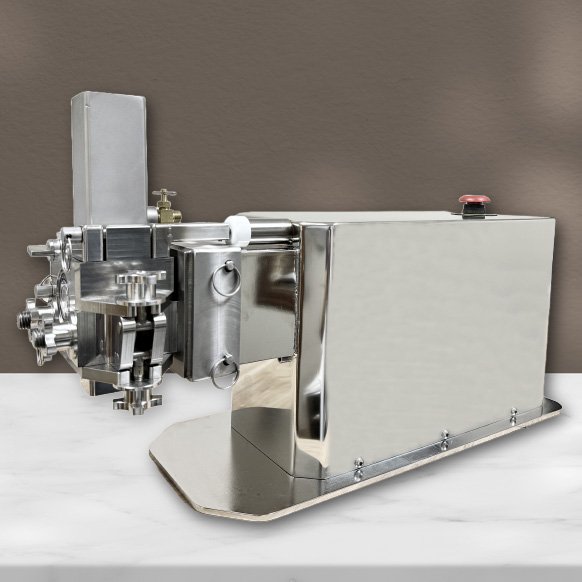

The CCF 4500.940 Cortical Grinder is engineered for clean room environments. It features advanced CNC machined components designed to withstand the forces associated with cortical grinding and allows for easy assembly/disassembly between processing. Our 2'' solid heat-treated cutting heads are hot-swappable, allowing the operator to switch between coarse and fine heads without breaking the sterile field. Bearings on both sides of the cutting heads reduce deflection and the potential for galling that can occur with stainless-on-stainless rotation. The cutting head assembly features O-rings at the fill tube, mid-body, and discharge, promoting fluid containment. The upper fill tube features a hinged point, allowing the operator to open and dislodge any trapped tissue.

  • Passivated and Electropolished stainless steel construction per CELCO 1000 for increased sterility.

  • Efficient assembly between processing with no tools required.

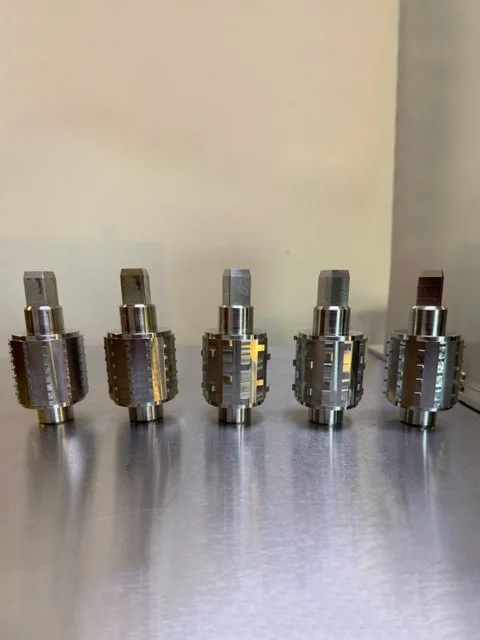

  • Fine, Medium, and Coarse cutting heads for ideal particle size.

  • Emergency E-stop easily accessed through a drape.

  • Proximity sensor at the fill tube preventing the grinder from operating when open.

  • Forward and reverse operation incase of blockages.

  • Autoclavable components including: Fill Tube, Cutting Head, Bearings, Push stick, and Pins.

  • Weighted Push Stick
